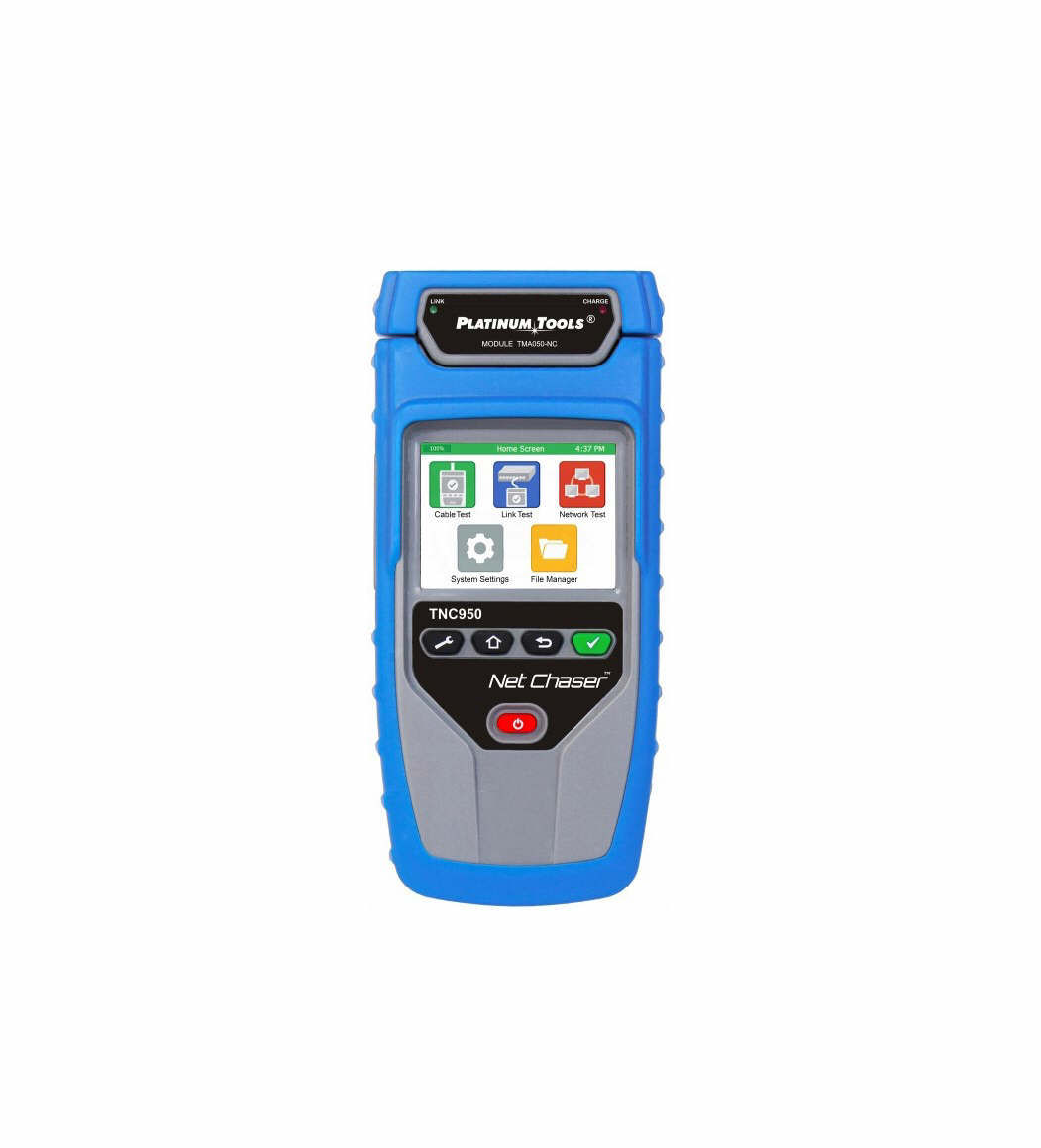

TNC950AR Net Chaser Ethernet Speed Certifier with Shoulder Bag

TNC950AR Net Chaser Ethernet Speed Certifier with Shoulder Bag

SKU: TNC950AR

The Net Chaser Ethernet Speed Certifier & Network Tester offers a complete solution to test and speed certify the data-carrying capabilities of Ethernet network cables up to 1 Gb/s by testing for noise in the network, detecting faults in the cable wiring, and ensuring that cables are able to support the speed capabilities of active equipment. Speed Certification to IEEE standards 802.3 Cable testing to TIA568A/B

The Net Chaser's advanced discovery gives the clearest vision of network layout and interfaces between active components like servers, switches, routers, etc. All the information is collected, stored, and ready for reporting; Pings, specific IPs or URL addresses, DHCP,
Traceroute, VLAN.

PLEASE NOTE: This product contains Lithium Ion Batteries. Due to FAA regulation this item is restricted to ground transportation in the lower 48 contiguous states and cannot ship to Alaska, Hawaii or Puerto Rico.

Features:

  • Bit Error Rate Test (BERT), Signal to Noise Ratio (SNR), SKEW
  • BERT only test 100Mbps & 1Gbps
  • Measures and displays length for each pair in feet or meters
  • Improperly terminated cables are clearly displayed on a color graphical wire-mapping display
  • Detects Length to Opens & Shorts
  • Verifies Continuity for RJ45, and Coax cables
  • Saves test results and easily uploaded to a computer
  • Tone Generation
  • ID Only remotes (Network and Coax) - up to 20 available.
  • Testing and ID Remotes - up to 8 available
  • Active Ethernet (Link Capability & Link Status)
  • Detects PoE/PoE+ and load test for voltage drop
  • IPV4 Support



Specifications:

  • Length Measurement: Time Domain Reflectometry & Capacitance
  • Power:
  • Wall Power Adapter: Input 100-240VAC 50/60Hz, Output 12VDC 2.5A, International plug adapters: (NA/EU/AU/UK)
  • DC Input Jack: 10-28VDC, 20 watts max
  • Battery pack: Rechargeable Li-ion rated 7.8V, 5500mAh, initial capacity
  • Battery life - Linked @ 1Gb - 8 hours minimum
  • Output Connectors: 8-Position shielded modular jack (Data), F-coax (video)
  • Interfaces: Micro USB, SD flash card
  • Languages: EN, FR, ESP, DEU, ITA

  • Battery Life:
  • Battery pack - Rechargeable Li-ion rated 7.8V, 5500mAh, initial capacity
  • Battery life
  • - Linked @ 1Gb - 8 hours minimum
  • - Active, not linked - 20 hours
  • Altitude: 10,000 ft. (3,048 m) operating altitude
  • Temperature:
  • Operating: -10 to 60?C
  • Storage: -30 to 70°C
  • Charging temperature range: 10°C to 45°C
  • Humidity: 10 to 90% non-condensing
  • Enclosure: High-strength PC/ABS plastic with UL94 V0 rating with boot
  • Size: 2.41"H x 4.18"W x 9.03"L (6.12 x 10.61 x 22.94 cm)
  • Weight: With batteries: 1 lb 12 oz
  • Warranty: 1 Year



Warranty:

  • 1 Year
    NT$90,640Price
    Excluding Sales Tax
