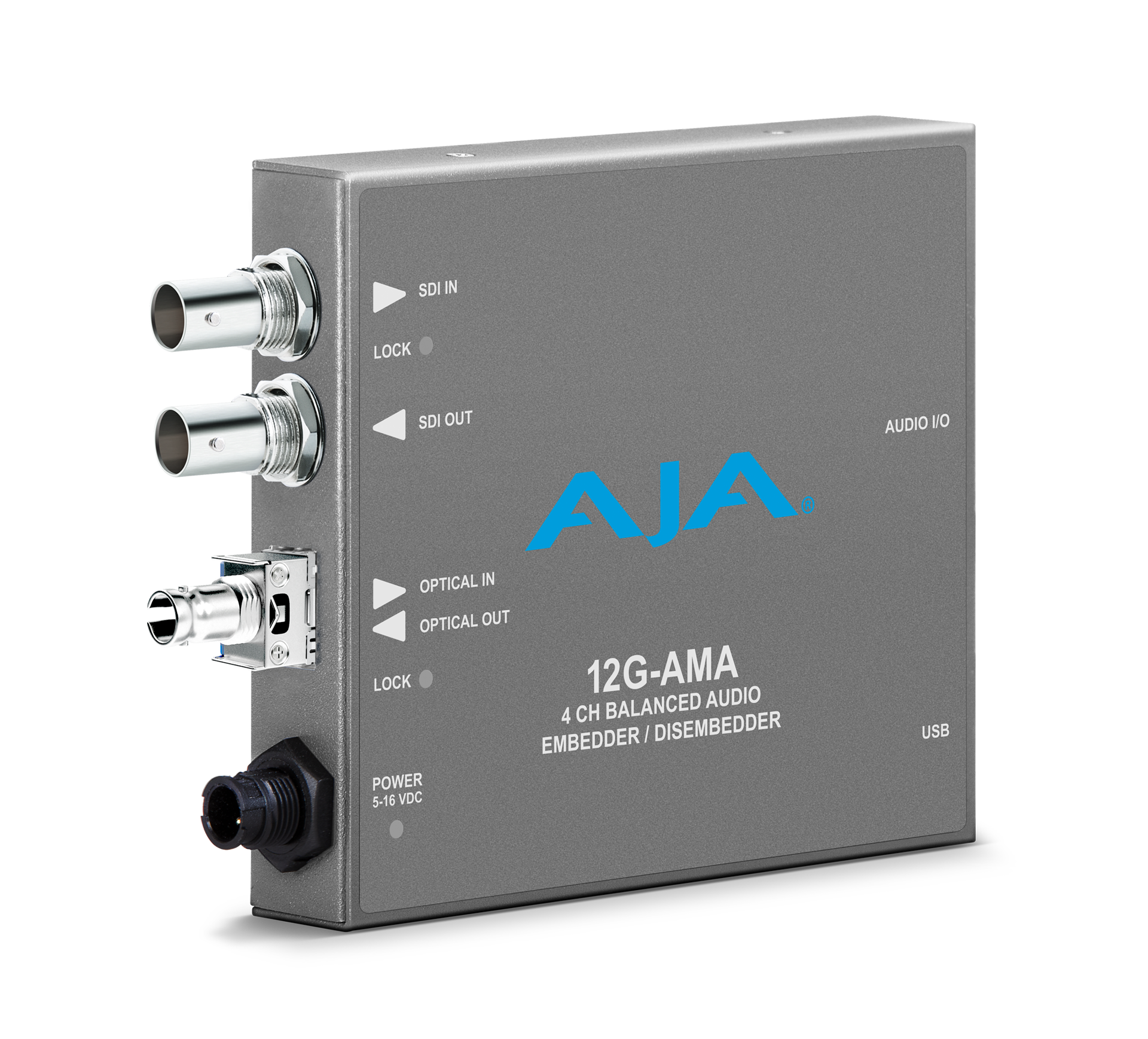

AJA 12G-AMA-T-ST 迷你轉換器

AJA 12G-AMA-T-ST 迷你轉換器

SKU: 12G-AMA-T-ST

12G-SDI Input and Output up to 4K/UltraHD with ST Fiber Transceiver。


Features

  • 12G-SDI Input and Output up to 4K/UltraHD
  • 4-channel balanced audio Embedder/Disembedder
  • Ships with a Fiber ST single channel SFP Transmitter for extending 4K/UltraHD signals over long distances
  • Audio Disembedding is always functional with four Analog outputs
  • Audio Embedding is user selectable on a channel pair basis, to either pass 12G-SDI input audio or embed input analog audio
  • Selectable Analog audio levels
  • Automatically detects and configures the input video standard
  • Small form factor allows for a wide variety of installation locations
  • Supplied XLR breakout cable offers 4-channels In and 4-channels over eight XLR connectors
  • USB connectivity via AJA Mini-Config software
  • Dipswitch configuration
  • +5-16 VDC Power
  • Five year warranty





12G-AMA-T-ST Workflow

The 12G-AMA in this workflow diagram is receiving 4K video and embedded audio via 12G-SDI. At the same time, the 12G-AMA is disembedding analog audio to the analog audio I/O for mixing. Additional inputs, like a microphone or other auxiliary can also be added to the mix.



The output of the mixer is then embedded into the SDI stream being output via the 12G-SDI port of the 12G-AMA. This 12G-SDI output is fed directly to a Ki Pro Ultra 12G to record the original 4K video with the newly embedded, mixed audio. At the




Supplied Breakout Cable

The included breakout cable supports 1-channel of analog audio per XLR connector for 4-Channels of input and 4-channels of ouput simultaneously.




USB and Mini-Config Support

AJA’s free Mini-Config software can be used with any USB enabled AJA Mini-Converter and provides an easy to use graphical interface with detailed information about the current input and output formats. Control all the parameters of any supported AJA Mini-Converter as well as loading firmware updates from AJA that add new features and functionality.




Universal Power Supply

All AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world.




Compact and Portable

AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack, or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.




AJA Mini-Matrix

Information on the complete line of AJA Mini-Converters is now available as a mobile app on iOS. The Mini-Converter product line is extensive and this app helps you find the right converter for any situation, wherever you are.



Individual products have links back to the main AJA website for more details and you can email product information directly from the app. The free AJA Mini-Matrix app for iPad and iPhone is available now in the Apple iTunes Store.




Industry Leading Support
AJA’s technical support is recognized as among the best in the industry and is available to all AJA customers. If you need assistance with any aspect of your Mini-Converter installation, configuration, operation or encounter any technical issue, AJA Support will work with you to get up and running.

Mini-Converter products are covered by a generous five year warranty. Please see the individual Product’s Manual for additional specifics around warranty conditions for the product itself.

    NT$58,000 Regular Price
    NT$57,900Sale Price
    Excluding Sales Tax
